| Model No. |
Type |
Max Temp |
Dimension(mm) |
Handle |
Cable |
Applications |
| NR-31B |
K |
400°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Surface
High temperature surface |
|
| NR-31BC |
K |
500°C |
 |
BAKELITE |
Single wire=1M
Elastic
Wire=2M |
Surface
High temperature
surface |
|
| NR-32 |
K |
400°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Surface |
|
| NR-33 |
K |
400°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Surface |
|
| NR-34A |
K |
600°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Air
Immersion |
|
| NR-34B |
K |
600°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Air
Immersion |
|

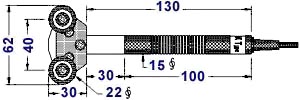

| NR-35A |
K |
500°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Flow Surface |
|

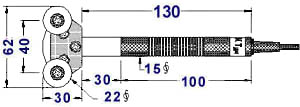

| NR-35B |
K |
250°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
Flow Surface |
|
| NR-38 |
K |
900°C |
 |
BAKELITE |
Single wire=1M
Elastic Wire=2M |
AIR |
|
| NR-39 |
K |
250°C |
 |
N/A |
FEP |
Point junction |
|

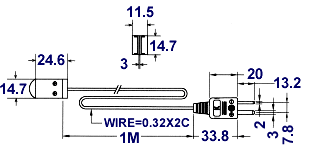

| NR-M39 |
K |
250°C |
 |
N/A |
FEP |
Magnetic |
|
